High Performance RAMSAN SLC NAND Flash + RAM Storage Print This Page
Extrem schnelle Flash + RAM Storagesysteme von Texas Memory Systems auf Basis von Flash oder RAM Speicher



The World Fastest Storage
RamSan von Texas Memory Systems auf SLC Flash oder RAM Speicher: Hochperformante Storagelösungen für den Teilaustausch von Storagesystemen (Cache) oder als komplett Ablösung in zeitkritischen Anwendungen

Geprüfte Technologie
Wird in den größten Rechenzentren der Welt verwendet
Geprüfte Technologie Zuverlässig
Die neun wichtigsten Wertpapiermätkte setzen auf RamSan
Zuverlässig
Leistungsstark
Die Top10 Telekommunikationsanbieter der Welt vertrauen auf RamSan
Leistungsstark Weltweite Präsenz
In 35 Ländern der Welt vertreten
Weltweit

Texas Memory Systems (TMS) bietet die derzeit kompaktesten und global schnellsten SAN Storage-Systeme an. Die RamSan Produktreihe umfasst eine energiesparende Palette von hochperformaten Systemen, beginnend mit einer 225GB PCIe Steckkarte, welche hervorragend dazu geeignet st, für bestimmte Applikatonen dedizierte Loons mit High-Speed-Zugriff zu schaffen. Im Enterprise-Segment führen die preisgekrönten RamSan Boxen das Feld an. So bietet z.B. die RamSan 630 eine skalierbare Lösung von 1 bis 10 TB Speichervolumen. Mit bis zu 1000.000 IOPS, 8GB/s Datendurchsatz und einer Latenzzeit von 0,08 ms ist die Lösung dramatisch schneller als klassische Festplattenlösungen. Die RamSan 630 lässt sich problemlos in fast alle gängigen Fibre Channel oder InfiniBand Lösungen einbinden. Im Endausbau können "gestakt" mehrere Millionen IOPS erreicht werden.

TMS Ram Storage und TMS Flash Storage Architektur


Für mehr Informationen und Preise hier klicken: Für mehr Informationen und Preise hier klicken


SLC basierende Flash Speicher

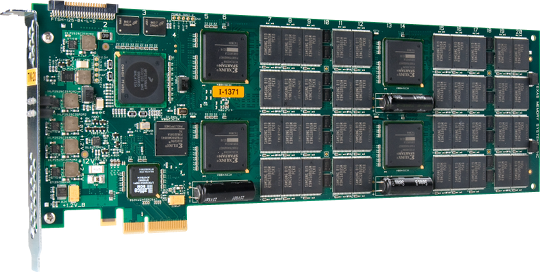

RAMSAN 10/20RAMSAN 10/20
Die RamSan 10 / 20 sind Hochleistungs PCIe-Card mit onboard Flash SSD Speicher. Die einfache Integration in bestehende Systeme gepaart mit der bewährten Technologie der RamSan 500 Storage Box, machen diesen Controller so einzigartig. Einfachste Integration, niedrige Anschaffungskosten, niedrige Energiekosten sowie signifikante Performance-Verbesserungen zeichnen dieses Produkt aus. Die Größe ist mit 225GByte bis 450GB bewusst dem typischen Anwendungsbereich wie Datenbanken oder Applikationen angepasst

Technische Daten: 120000 Lesen / 50000 Schreiben I/O - 700MB/s Lesen und 500MB/s Schreiben Bandbreite.

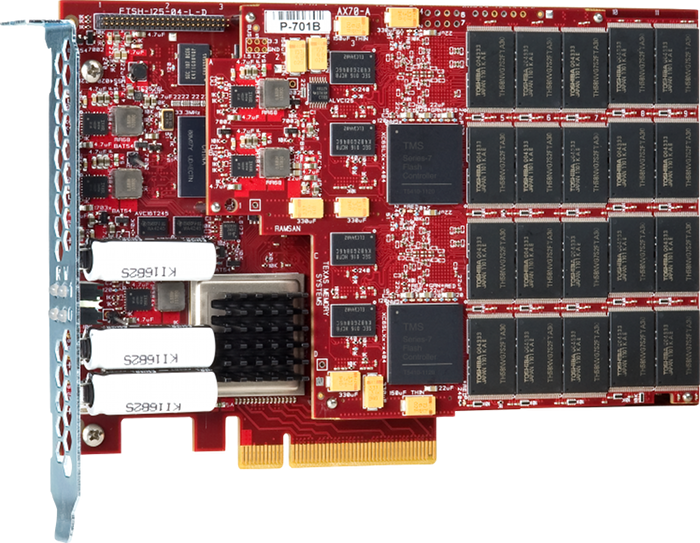

RAMSAN 70
RAMSAN 70
Die RamSan 70 ist eine Hochleistungs PCIe-Card mit onboard Flash SSD Speicher. Die einfache Integration in bestehende Systeme gepaart mit der bewährten Technologie der RamSan Familie, machen diesen Controller so einzigartig. Einfachste Integration, niedrige Anschaffungskosten, niedrige Energiekosten sowie signifikante Performance-Verbesserungen zeichnen dieses Produkt aus. Die Größe ist mit 450GByte bis 900GB bewusst dem typischen Anwendungsbereich wie Datenbanken oder Applikationen angepasst.

Technische Daten: 330000 Lesen / 160000 Schreiben I/O - 2000MB/s Lesen und 1400MB/s Schreiben Bandbreite.

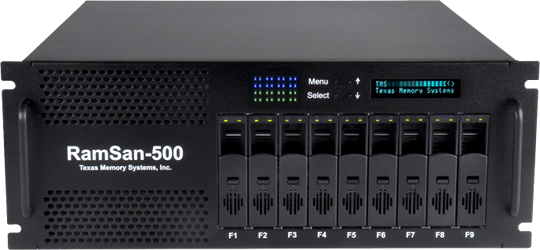

RAMSAN 500
RAMSAN 500
Die RamSan 500 verbindet Performance mit Kapazität und kann problemlos an fast jedes SAN oder NAS angeschlossen werden. Dabei verfügt das Gerät über insgesamt 8 Fibre Channel Anschlüsse . Bei gerade einmal 250 Watt Stromverbrauch und einer Einbauhöhe von 4 Einheiten passt das Gerät in nahezu jede Umgebung. Die optimale Lösung für Energieeffizienz und Performance.



RAMSAN 6xx
RAMSAN 6xx
Die Ramsan 620 ist eine skalierbare Lösung von 1 bis 5 TB. Das Gerät verfügt über SLC Speicher und ist mit bis zu 5TB verfügbar. Mit bis zu 250.000 IOPS, 3GB/s Datendurchsatz und einer Latenzzeit von 80 bis 200 Mikrosekunden ist die Lösung bis zu fünfundzwanzig mal schneller als klassische Festplattenlösungen. Die RamSan 620 lässt sich problemlos in fast alle gängigen Fibre-Channel oder InfiniBand Lösungen einbinden. Das Nachfolgemodell die RS 630 kann sogar bis zu 10 TB erweitert werden und dass bei bis zu 500.000 IOPS.



RAMSAN 5000
RAMSAN 5000
Die RamSan 5000 ist eine skalierbare Enterprise Lösung die auf der preisgekrönten RamSan 500 basiert.Die Ramsan 5000 ist die schnellste Flash-basierende Lösung der Welt. In der Basis Konfiguration liefert das System bis zu einer Million IOPS pro Sekunde. Das System kann skaliert bis zu mehreren Millionen IOPS produzieren. Es besteht in der Basis-Konfiguration aus 10 RamSan 500 und wird mit der Terra-Watch-Firmware ausgeliefert, die über eine grafische Oberfläche das System überwacht und konfiguriert.


nach oben



RAM basierende Speichersysteme

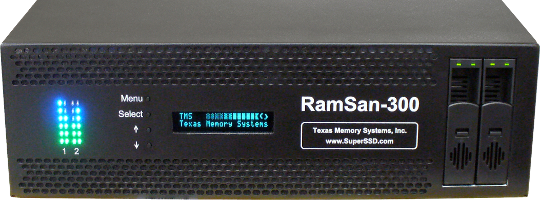

RAMSAN 300RAMSAN 300
Die RamSan 300 basiert auf der RamSan 440/400 Technologie und bietet sich als kostengünstige Alternative in kleineren Umgebungen an. Gerade wenn es darum geht Teilbereiche oder kleinere Datenbanken zu beschleunigen um beispielsweise Anmeldungen oder häufig benutzte Daten schnell zur Verfügung zu stellen, bietet sich die RamSan 300 als Alternative zu klassischen, häufig wesentlich teueren Storages an.


RAMSAN 400RAMSAN 400
Beschleunigen Sie Ihr Batch Processing, OLTP oder andere intensive Anwendungen. Die RamSan 400 ist zwei bis zehn mal schneller als handelsübliche Lösungen. Dank der vier Fibre Channel oder Infinity Band Ports wird die hohe Bandbreite optimal verteilt. Dank neuester SSD Technologie bietet die RamSan 400 die Möglichkeit, Ihre Prozessoren schnell mit Daten zu versorgen und sorgt so dafür, unnötige I/O Waiting Time zu minimieren.

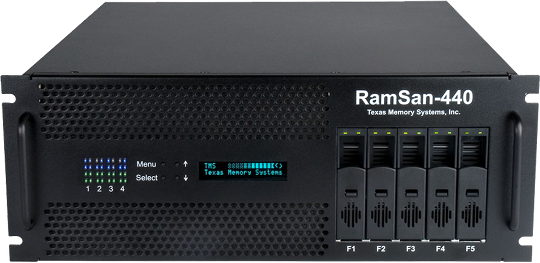

RAMSAN 440RAMSAN 440
Die RamSan 440 ist ein neues RAM basierendes Solid State Storage mit extrem hoher Performance und hoher Kapazität. Das System liefert über 600.000 IOPS bei 512GB, verteilt über lediglich vier Höheneinheiten. Solid State Technologie wie bei der RamSan 440 erlaubt Unternehmen schneller und effizienter auf Daten zuzugreifen. Die verwendete DDRII Technologie liefert extrem hohe Performance. Somit ist die RamSan 440 der Turbo für Ihre Datenbanken.


TMS RAMSAN Enterprise Storage Lösungen Flyer
Download des Flyers als PDF, 2,3 MB

Vaillant Anwenderbericht
Anwenderbericht als PDF, 60 KB


nach oben


[Hier können Sie Infomationsunterlagen anfordern]

 Währung auswählen / Select currency:   Händler / Reseller Login

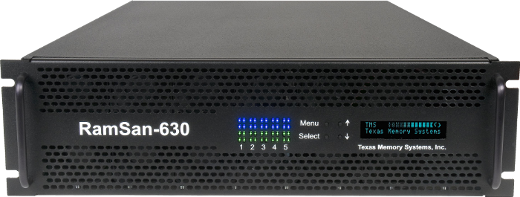

RamSan-630. Bis zu 10TB im 3U Rackmount, SLC NAND Flash Storage mit 1.000.000 IOPS, 10 I/O Ports
Best.Nr.ProduktPreis*Order
RS630/1
RamSan-630 1TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/2
RamSan-630 2TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/3
RamSan-630 3TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/4
RamSan-630 4TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/5
RamSan-630 5TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/6
RamSan-630 6TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/7
RamSan-630 7TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/8
RamSan-630 8TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/9
RamSan-630 9TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS630/10
RamSan-630 10TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Bundled Component
RS630FC341iIncluded 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS630FC381iIncluded 8 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS630IB381iIncluded QDR InfiniBand Controller InterfaceBrutto 0 EUR
a.A.
RS630SpKFM500iIncluded with the 3 Year Critical Warranty Package. Includes: 1 Power Supply, 1 Optical Transceiver, 1 Fan Bank, 1 Spare SLC Flash Module.Brutto 0 EUR
a.A.
Upgrades
RS630FC341Additional 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS630FC381Additional 8 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS630IB381Additional QDR InfiniBand Controller InterfaceBrutto 0 EUR
a.A.
RS630FTF/5001 Fault Tolerant Flash (FTF) Card, used with ActiveSpare featureBrutto 0 EUR
a.A.
RS630UG/11TB SLC Flash Storage UpgradeBrutto 0 EUR
a.A.
Firmware Feature
RS630AcSpActive Spare Firmware feature that enables designation of one FTF card as an active spareBrutto 0 EUR
a.A.
RS630DaStArDataStat Archive Firmware feature that captures and stores system performance data for one yearBrutto 0 EUR
a.A.
RS630EmailAEmail Alert Firmware feature that sends an email alert when there is a change in a system's statusBrutto 0 EUR
a.A.
RS630FWPFirmware Package DataStat Archive, EmailAlert, and ActiveSpare (does not include LUNMask)Brutto 0 EUR
a.A.
RS630LUNM5Firmware feature that enables hardware LUN Masking for up to 5TB of capacityBrutto 0 EUR
a.A.
RS630LUNM10Firmware feature that enables hardware LUN Masking for up to 10TB of capacityBrutto 0 EUR
a.A.
Spares Kit
RS630SpKitSpare Kit Includes: 1 Power Supply, 1 Optical Transceiver, 1 Fan Bank, 1 500GB Spare SLC Flash ModuleBrutto 0 EUR
a.A.
Parts
RS630Chlid1 Chassis lidBrutto 0 EUR
a.A.
RS630Face1 FaceplateBrutto 0 EUR
a.A.
RS630Fan1 Fan BankBrutto 0 EUR
a.A.
RS630OT1 Optical TransceiverBrutto 0 EUR
a.A.
RS630PoRSer1 Power supply moduleBrutto 0 EUR
a.A.
RS630RackSL1 Rack slide kitBrutto 0 EUR
a.A.
RS630MCP1 Management Control PortBrutto 0 EUR
a.A.
RS630FM/500GB1 Flash memory 500GB module to be used as a replacement part onlyBrutto 0 EUR
a.A.
Shipping Kit
RS630Ship1 Shipping kitBrutto 0 EUR
a.A.

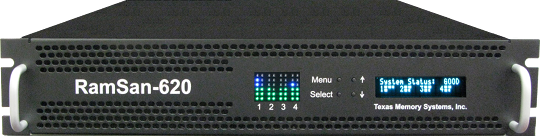

RamSan-620. Bis zu 5TB im 2U Rackmount, SLC NAND Flash Storage mit 250.000 IOPS, 8 I/O Ports
Best.Nr.ProduktPreis*Order
RS620/1
RamSan-620 1TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS620/2
RamSan-620 2TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS620/3
RamSan-620 3TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS620/4
RamSan-620 4TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS620/5
RamSan-620 5TB SLC Flash Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Bundled Component
RS620FC141iIncluded 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
Upgrades
RS620FC141Additional 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS620FTF/2561 Fault Tolerant Flash (FTF) card, used with ActiveSpare featureBrutto 0 EUR
a.A.
RS620UG/11TB SLC Flash Storage UpgradeBrutto 0 EUR
a.A.
Firmware Features
RS620EmailAFirmware feature that sends an email alert when there is a change in a system's statusBrutto 0 EUR
a.A.
RS620FWPDataStat Archive, EmailAlert, and ActiveSpare (does not include LUNMask)Brutto 0 EUR
a.A.
RS620LUNM5Firmware feature that enables hardware LUN Masking for up to 5TB of capacityBrutto 0 EUR
a.A.
RS620AcSpFirmware feature that enables designation of one FTF card as an active spareBrutto 0 EUR
a.A.
RS620DaStArFirmware feature that captures and stores system performance data for one yearBrutto 0 EUR
a.A.
Spares Kit
RS620SpKFM256Includes: 1 Power Supply, 1 Optical Transceiver, 1 Fan Bank, 1 Spare 256GB SLC Flash ModuleBrutto 0 EUR
a.A.
Parts
RS620Chlid1 Chassis lidBrutto 0 EUR
a.A.
RS620Face1 FaceplateBrutto 0 EUR
a.A.
RS620Fan1 Fan bankBrutto 0 EUR
a.A.
RS620FM2561 Flash memory module to be used as a replacement part onlyBrutto 0 EUR
a.A.
RS620OT1 Optical TransceiverBrutto 0 EUR
a.A.
RS620Power1 Power supply moduleBrutto 0 EUR
a.A.
RS620MCP1 Management Control PortBrutto 0 EUR
a.A.
RS620RackSL1 Rack slide kitBrutto 0 EUR
a.A.
Shipping Kit
RS620Ship1 Shipping kitBrutto 0 EUR
a.A.

RamSan-500. Bis 2TB im 4U Rackmount, SLC Flash RAID und 64GB DDR Cache mit 100.000 IOPS, 8 I/O Ports
Best.Nr.ProduktPreis*Order
RS500/1
RamSan-500 1TB SLC Flash Storage, 16GB DDR Cache, Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS500/2
RamSan-500 2TB SLC Flash Storage, 32GB DDR Cache, 2 Interfaces and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Bundled Component
RS500FC77iIncluded 4 Gb Fibre Channel ControllerBrutto 0 EUR
a.A.
Upgrades
RS500FC77Additional 4 Gb Fibre Channel ControllerBrutto 0 EUR
a.A.
RS500FM/1Flash Memory Upgrade-1TB 2TB is the maximum capacity of this unitBrutto 0 EUR
a.A.
RS500MU/16Upgrades DDR Cache from 16GB to 32GBBrutto 0 EUR
a.A.
RS500MU/32Upgrades DDR Cache from 32GB to 64GB This price is not valid if existing memory must be removedBrutto 0 EUR
a.A.
Firmware Features
RS500DataStatArchiveDataStat Archive Firmware feature that captures and stores system performance data for one yearBrutto 0 EUR
a.A.
RS500EmailAlertEmailAlert Firmware feature that captures and stores system performance data for one yearBrutto 0 EUR
a.A.
RS500FWPackageFirmware Package Turbo, DataStat-Archive, and EmailAlert (does not include LUNMask)Brutto 0 EUR
a.A.
RS500LUNMask/5LUN Masking Firmware feature that enables hardware LUN MaskingBrutto 0 EUR
a.A.
RS500TurboTurbo Firmware feature that allows the user to lock a storage Logical Unit (LUN) entirely in the RamSan-500 cacheBrutto 0 EUR
a.A.
Spares Kit
RS500SpKFM/128Spares Kit Includes: 1 Power supply, 1 Fan bank, Spare 128GB Flash moduleBrutto 0 EUR
a.A.
RS500SpKFM/256Spares Kit Includes: 1 Power supply, 1 Fan bank, Spare 256GB Flash moduleBrutto 0 EUR
a.A.
Parts
RS500/128FM1 128GB Flash memory module. To be used as a replacement part onlyBrutto 0 EUR
a.A.
RS500BatteryKit1 Replacement Battery KitBrutto 0 EUR
a.A.
RS500Chlid1 Chassis lidBrutto 0 EUR
a.A.
RS500Fan1 Fan bankBrutto 0 EUR
a.A.
RS500MCP1 Management Control PortBrutto 0 EUR
a.A.
RS500Mem/41 Spare 4GB memory board – Replacement or spare board only, as boards must be installed in quantities of 4Brutto 0 EUR
a.A.
RS500Power1 Power supply moduleBrutto 0 EUR
a.A.
RS500RackSL1 Rack slide kitBrutto 0 EUR
a.A.
RS500RAIDCON1 RAID Controller replacement cardBrutto 0 EUR
a.A.
RS500/256FM1 256GB Flash memory module. To be used as a replacement part onlyBrutto 0 EUR
a.A.
RS500Face1 Faceplate.Brutto 0 EUR
a.A.
RS500Mem/81 Spare 8GB memory board – Replacement or spare board only, as boards must be installed in quantities of 4.Brutto 0 EUR
a.A.
Shipping Kit
RS500Ship1 Shipping kit.Brutto 0 EUR
a.A.

RamSan PCI Cards. Bis 900GB PCIe SLC NAND Flash Storage mit 120.000 (RS10/20) bzw. 600.000 IOPS (RS70)
Best.Nr.ProduktPreis*Order
RS10/225
RamSan-10 225GB usable SLC Flash storage, embedded PowerPC, PCIe (x4) connection, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS20/450
RamSan-20 450GB usable SLC Flash storage, embedded PowerPC, PCIe (x4) connection and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS70/450
RamSan-70 450GB usable SLC Flash storage, embedded PowerPC, PCIe (x8) connection and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS70/900
RamSan-70 900GB usable SLC Flash storage, embedded PowerPC, PCIe (x8) connection and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Upgrades
RS-70/UG450RamSan-70 Mezzanine 450GB SLC Flash Storage UpgradeBrutto 0 EUR
a.A.
Shipping Kit
RSPCIShip1 Shipping kitBrutto 0 EUR
a.A.

RamSan-440. Bis 512GB 4U Rackmount SSD RAM Storage mit 600.000 IOPS. 8 I/O Ports
Best.Nr.ProduktPreis*Order
RS440/128
RamSan-440 128GB DDR RAM Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS440/256
RamSan-440 256GB DDR RAM Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS440/512
RamSan-440 512GB DDR RAM Storage, Interface, and 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Bundled Component
RS440FC77iIncluded 4 Gb Fibre Channel ControllerBrutto 0 EUR
a.A.
Upgrades
RS440FC77Additional 4 Gb Fibre Channel ControllerBrutto 0 EUR
a.A.
RS440MU/128Memory Upgrade-128GB. 512GB is the maximum capacity of this unit. Can only be used to upgrade 128GB unit to 256GB unitBrutto 0 EUR
a.A.
RS440MU/256Memory Upgrade-256GB. 512GB is the maximum capacity of this unit. Can only be used to upgrade 256GB unit to 512GB unitBrutto 0 EUR
a.A.
Firmware Features
RS440AcBaActive Backup Firmware feature that constantly writes data from RAM to backup Flash modulesBrutto 0 EUR
a.A.
RS440DaStArDataStat Archive Firmware feature that captures and stores system performance data for one yearBrutto 0 EUR
a.A.
RS440EmailAEmailAlert Firmware feature that sends an email alert when there is a change in a system's statusBrutto 0 EUR
a.A.
RS440InstOnIOInstantOn-IO Firmware feature that allows transactions to be processed while data is restoring from Flash backup drives to the main RAM storage mediaBrutto 0 EUR
a.A.
RS440FWPackFirmware Package InstantOn-IO, DataStat-Archive, ActiveBackup, and EmailAlert (does not include LUNMask)Brutto 0 EUR
a.A.
RS440LUNM5LUN Masking Firmware feature that enables hardware LUN MaskingBrutto 0 EUR
a.A.
Spares Kit
RS440SpKFM128Spares Kit Includes: 1 Power supply, 1 Fan bank, 1 Spare 128GB Flash moduleBrutto 0 EUR
a.A.
RS440SpKMUC2Spares Kit Includes: 1 Power supply, 1 Fan bank, 1 Spare 128GB Flash module, 1 Spare 16GB Main Memory BoardBrutto 0 EUR
a.A.
RS440SpKMUC5Spares Kit Includes: 1 Power Supply, 1 Fan bank, 1 Spare 128GB Flash module, 1 Spare 16GB Main Memory Board, 1 Spare 16GB Daughter Memory BoardBrutto 0 EUR
a.A.
Parts
RS440Chlid1 Chassis lidBrutto 0 EUR
a.A.
RS440Face1 FaceplateBrutto 0 EUR
a.A.
RS440Fan1 Fan bankBrutto 0 EUR
a.A.
RS440FM1281 128GB Flash module. To be used as a replacement part onlyBrutto 0 EUR
a.A.
RS440MUCD1 Spare 16GB Daughter Memory Board – Replacement or spare board only, as boards must be installed in quantities of 9Brutto 0 EUR
a.A.
RS440RackSL1 Rack slide kitBrutto 0 EUR
a.A.
RS440RAIDCRAID Controller replacement cardBrutto 0 EUR
a.A.
RS440BatKit3 Replacement Lead Acid Gel batteriesBrutto 0 EUR
a.A.
RS440Power1 Power supplyBrutto 0 EUR
a.A.
RS440MCP1 Management Control PortBrutto 0 EUR
a.A.
RS440MUCM1 Spare 16GB Main Memory Board – Replacement or spare board only, as boards must be installed in quantities of 9Brutto 0 EUR
a.A.
Shipping Kit
RS440Ship1 Shipping kitBrutto 0 EUR
a.A.

RamSan-400. Bis 128GB 3U Rackmount SSD RAM Storage mit 400.000 IOPS
Best.Nr.ProduktPreis*Order
RS400/32
RamSan-440 32GB DDR RAM Storage, 1 Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS400/64
RamSan-440 64GB DDR RAM Storage, 1 Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS400/96
RamSan-440 96GB DDR RAM Storage, 1 Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS400/128
RamSan-440 128GB DDR RAM Storage, 1 Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Bundled Component
RS400FC400iIncluded 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS400FC200iIncluded 2 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS400IB900iIncluded Single Port 4x InfiniBand Controller InterfaceBrutto 0 EUR
a.A.
Upgrades
RS400FC400Additional 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS400FC65Additional 2 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS400IB900Additional Single Port 4x InfiniBand Controller InterfaceBrutto 0 EUR
a.A.
RS400MU/32Memory Upgrade-32GB 128GB is the maximum capacity of this unitBrutto 0 EUR
a.A.
Firmware Features
RS400AcBaActiveBackup Firmware feature that constantly writes data from memory to disk drivesBrutto 0 EUR
a.A.
RS400LUNM5LUN Masking Firmware feature that enables hardware LUN MaskingBrutto 0 EUR
a.A.
Spares Kit
RS400SpKitSpares Kit Includes: 1 Power supply, 1 Disk drive, 1 Fan bankBrutto 0 EUR
a.A.
RS400SpKM8Spares Kit Includes: 1 Power supply, 1 Disk drive, 1 Fan bank, 1 8GB Memory cardBrutto 0 EUR
a.A.
Parts
RS400BatKit3 Replacement Lead Acid Gel batteriesBrutto 0 EUR
a.A.
RS400Chlid1 Chassis lidBrutto 0 EUR
a.A.
RS400Disk1 SATA Disk DriveBrutto 0 EUR
a.A.
RS400Fan1 Fan bankBrutto 0 EUR
a.A.
RS400FwdSt1 Forward Stocking KitBrutto 0 EUR
a.A.
RS400MCP1 Management Control PortBrutto 0 EUR
a.A.
RS400Power1 Power supplyBrutto 0 EUR
a.A.
RS400RackSL1 Rack slide kitBrutto 0 EUR
a.A.
RS400Face1 FaceplateBrutto 0 EUR
a.A.
RS400Mem/81 Spare 8GB memory board – Replacement or spare board only, as boards must be installed in quantities of 4Brutto 0 EUR
a.A.
Shipping Kit
RS400Ship1 Shipping kitBrutto 0 EUR
a.A.
Warranty
RS400RtFAPRAPR - Return to Factory: Standard Return to Factory warranty covers equipment for one year from the date of shipment The warranty includes return-to-factory service for equipment that does not meet its published specification during normal operation Brutto 0 EUR
a.A.
RS400EWAAPRAPR - Extended Warranty: Extends Basic Return to Factory Warranty for one year Includes Advanced Parts Replacement Customer is responsible for shipping No more than two years of extended warranty can be orderedBrutto 0 EUR
a.A.
RS400EsY1APR - Essential Warranty: Advanced Parts Replacement with 8x5xNBD on-site service for one year, which must run concurrent with first year of warranty [SparesKit] optional [24x7-Phone-Support] optional Customer is responsible for shipping Price anBrutto 0 EUR
a.A.
RS400EsAdYrAdditional Year Essential Warranty: Advanced Parts Replacement with 8x5xNBD on-site service for one year Customer is responsible for shipping Price and availability may vary based on location Maximum of two additional years of on-site service can Brutto 0 EUR
a.A.
RS400CrY1Critical Warranty: Advanced Parts Replacement with 24x7x4 on-site service for one year, which must run concurrent with first year of warranty If this SKU is ordered, [24x7-Phone-Support] and [SparesKit] must be ordered per site Customer is responsiBrutto 0 EUR
a.A.
RS400CrAdYrAdditional Year Critical Warranty:Advanced Parts Replacement with 24x7x4 on-site Service for one year [24x7-Phone-Support] must be ordered per site Customer is responsible for shipping Price and availability may vary based on location Maximum of Brutto 0 EUR
a.A.

RamSan-300. Bis 32GB 3U Rackmount SSD RAM Storage mit 200.000 IOPS
Best.Nr.ProduktPreis*Order
RS300/16
RamSan-300 16GB DDR RAM Storage, 1 Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
RS300/32
RamSan-300 32GB DDR RAM Storage, 1 Interface, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Bundled Component
RS300FC400iIncluded 4 Gb Fibre Channel ControllerBrutto 0 EUR
a.A.
RS300IB900iIncluded 4x InfiniBand ControllerBrutto 0 EUR
a.A.
Upgrades
RS300FC400Additional 4 Gb Fibre Channel Controller InterfaceBrutto 0 EUR
a.A.
RS300IB900Additional Single Port 4x InfiniBand Controller InterfaceBrutto 0 EUR
a.A.
RS300MU16Memory Upgrade-16GB 32GB is the maximum capacity of this unitBrutto 0 EUR
a.A.
Firmware Features
RS300AcBaActive Backup Firmware feature that constantly writes data from memory to disk drivesBrutto 0 EUR
a.A.
Spares Kit
RS300SpKitSpares Kit Includes: 1 Power Supply, 1 Disk Drive, 1 Fan BankBrutto 0 EUR
a.A.
RS300SpKitM8Spres Kit Includes: 1 Power Supply, 1 Disk Drive, 1 Fan Bank, 1 8GB Memory CardBrutto 0 EUR
a.A.
Parts
RS300Battery1 Lead Acid BatteryBrutto 0 EUR
a.A.
RS300Chlid1 Chassis lidBrutto 0 EUR
a.A.
RS300Disk1 SATA Disk DriveBrutto 0 EUR
a.A.
RS300Face1 FaceplateBrutto 0 EUR
a.A.
RS300Fan1 Fan BankBrutto 0 EUR
a.A.
RS300MCP1 Management Control PortBrutto 0 EUR
a.A.
RS300Mem/81 Spare 8GB memory board – Replacement or spare board only, as boards must be installed in quantities of at least 2Brutto 0 EUR
a.A.
RS300Power1 Power SupplyBrutto 0 EUR
a.A.
RS300RackSL1 Rack slide kitBrutto 0 EUR
a.A.
Shipping Kit
RS300Ship1 Shipping kitBrutto 0 EUR
a.A.
Warranty
RS30024x7PhOne-year 24x7 technical support by phone per siteBrutto 0 EUR
a.A.
RS300RtFAPRAPR - Return to Factory: Standard Return to Factory warranty covers equipment for one year from the date of shipment The warranty includes return-to-factory service for equipment that does not meet its published specification during normal operation Brutto 0 EUR
a.A.
RS300ExWaAPR - Extended Warranty Extends basic return to factory warranty for one year Includes advanced parts replacement No more than two years of extended warranty can be ordered Customer is responsible for shippingBrutto 0 EUR
a.A.
RS300EsY1Essential Warranty: Advanced Parts Replacement with 8x5xNBD on-site service for one year, which must run concurrent with first year of warranty [SparesKit] optional [24x7-Phone-Support] optional Customer is responsible for shipping Price and avaiBrutto 0 EUR
a.A.
RS300EsAdYrAdditional Year Essential Warranty: Advanced Parts Replacement with 8x5xNBD on-site service for one year Customer is responsible for shipping Price and availability may vary based on location Maximum of two additional years of on-site service can Brutto 0 EUR
a.A.
RS300CrY1Critical Warranty: Advanced Parts Replacement with 24x7x4 on-site service for one year, which must run concurrent with first year of warranty If this SKU is ordered, [24x7-Phone-Support] and [SparesKit] must be ordered per site Customer is responsiBrutto 0 EUR
a.A.
RS300CrAdYrAdditional Year Critical Warranty: Advanced Parts Replacement with 7x24x4 on-site service for one year [24x7-Phone-Support] must be ordered per site Customer is responsible for shipping Price and availability may vary based on location Maximum ofBrutto 0 EUR
a.A.

RamSan Write Accellerator
Best.Nr.ProduktPreis*Order
RSWrAccWrite Accellerator Includes: Two 32GB DDR RAM storage systems with 2-FC400 each, 1 Year Return to Factory WarrantyBrutto 0 EUR
a.A.
Firmware Features
RSWAAcBaActive Backup Firmware feature that constantly writes data from memory to disk drivesBrutto 0 EUR
a.A.
WALUNM5LUN Masking Firmware feature that enables hardware LUN MaskingBrutto 0 EUR
a.A.
Spares Kit
RSWASpKitSpares Kit Includes: 1 Power Supply, 1 Disk Drive, 1 Fan BankBrutto 0 EUR
a.A.
RSWASpKMHC3USpares Kit Includes: 1 Power Supply, 1 Disk Drive, 1 Fan Bank, 1 8GB Memory CardBrutto 0 EUR
a.A.
Parts
RSWABattery1 Lead Acid BatteryBrutto 0 EUR
a.A.
RSWADisk1 SATA Disk DriveBrutto 0 EUR
a.A.
RSWAFace1 FaceplateBrutto 0 EUR
a.A.
RSWAMCP1 Management Control PortBrutto 0 EUR
a.A.
RSWAMemHC1 Spare 8GB memory board – Replacement or spare board only, as boards must be installed in quantities of at least 2Brutto 0 EUR
a.A.
RSWAPower1 Power SupplyBrutto 0 EUR
a.A.
RSWARackSL1 Rack slide kitBrutto 0 EUR
a.A.
RSWAChlid1 Chassis LidBrutto 0 EUR
a.A.
RSWAFan1 Fan BankBrutto 0 EUR
a.A.
Shipping Kit
RSWAShip1 Shipping kitBrutto 0 EUR
a.A.
Warranty
RSWA24x7PhOne-year 24x7 technical support by phone per siteBrutto 0 EUR
a.A.
RSWARtFAPRAPR - Return to Factory: Standard Return to Factory warranty covers equipment for one year from the date of shipment The warranty includes return-to-factory service for equipment that does not meet its published specification during normal operation Brutto 0 EUR
a.A.
RSWAExWaAPR - Extended Warranty: Extends basic return to factory warranty for one year Includes advanced parts replacement No more than two years of extended warranty can be ordered Customer is responsible for shipping Cost: 1050$ + 5% of product list priBrutto 0 EUR
a.A.
RSWAEsY1Essential Warranty: Advanced Parts Replacement with 8x5xNBD on-site service for one year, which must run concurrent with first year of warranty [SparesKit] optional [24x7-Phone-Support] optional Customer is responsible for shipping Price and avaiBrutto 0 EUR
a.A.
RSWAEsAdYrAdditional Year Essential Warranty: Advanced Parts Replacement with 8x5xNBD on-site service for one year Customer is responsible for shipping Price and availability may vary based on location Maximum of two additional years of on-site service can Brutto 0 EUR
a.A.
RSWACrY1Critical Warranty: Advanced Parts Replacement with 24x7x4 on-site service for one year, which must run concurrent with first year of warranty If this SKU is ordered, [24x7-Phone-Support] and [SparesKit] must be ordered per site Customer is responsiBrutto 0 EUR
a.A.
RSWACrAdYrAdditional Year Critical Warranty: Advanced Parts Replacement with 24x7x4 on-site service for one year [24x7-Phone-Support] must be ordered per site Customer is responsible for shipping Price and availability may vary based on location Maximum ofBrutto 0 EUR
a.A.

RamSan Generic Support Services
Best.Nr.ProduktPreis*Order
Warranty
RSWSStandard Warranty includes advanced parts replacement (APR) service for equipment that does not meet its published specification during normal operation and 24x7 Phone Support Contact TMS for additional details and terms Customer is responsible for Brutto 0 EUR
a.A.
RSWCCritical Warranty includes advanced parts replacement (APR) service for equipment that does not meet its published specification during normal operation, 24x7 Phone Support, and 4x24x365 on-site service [SparesKit] must be ordered per site AvailabilBrutto 0 EUR
a.A.
RSWBHBlackhole Warranty: If components cannot be returned to TMS factory for repair/replacement due to privacy or security concerns, Texas Memory Systems will send replacement components without expecting the failed components to be returned The product’Brutto 0 EUR
a.A.
Consulting
RSCONS8Texas Memory Systems Consulting (8-Hrs) Travel and expenses additionalBrutto 0 EUR
a.A.
RSISS8RamSan Installation/Software Support (8-Hrs) Travel and expenses additionalBrutto 0 EUR
a.A.

* Die Preise verstehen sich zuzüglich der gesetzlichen Mehrwertsteuer, Verpackungs- und Versandkostenpauschale.
Zur Ansicht der Einkaufspreise für Händler ist eine Anmeldung erforderlich.
