EZBee™ Serial Module EZBee™ is a compact Zigbee single-board module which is compliant to the 2.45GHz Zigbee specification v1.0 of IEEE 802.15.4.
EZBee-DBK: Zigbee Evaluation Kit EZBee™ Evaluation Kit (part no.: EZB-001EK) is the evaluation kit of EZBee™, which is a compact Zigbee single-board module compliant to the 2.45GHz Zigbee specification v1.0 of IEEE 802.15.4.
EZBee™ Serial Module EZBee™ is a compact Zigbee single-board module which is compliant to the 2.45GHz Zigbee specification v1.0 of IEEE 802.15.4. With EZBee™, users may enable Zigbee wireless network easily without a professional knowledge on Zigbee protocol. EZBee™ is designed to be used as a serial RF module to a Host system.
Part no.
Description
Version
Release Date
EZB-001
2.4GHz Zigbee Module
Short Range
VER.C.0.9.1
VER.R.0.9.0
VER.E.0.9.0
Sept 26, 2005
EZB-001EK
EZB-001 Evaluation Kit
VER.C.0.9.1
VER.R.0.9.0
Sept 26, 2005
EZBee™- EZB-001
Using AT commands provided, users may communicate with EZBee™. Full AT commands available can be found in the user manual.
EZBee™ can be operated as coordinator, router and end-device. Coordinators and routers are FFD (Full functional Device), so can be communicated peer-to-peer without beacon. But End-device module is RFD (Reduced Functional Device), so can be working only with Coordinator and routers and can be configured to work as low power mode.
16 x 33.5 x 3.3 mm compact shield module for SMD mounting
128KB Flash memory, 4KB SRAM, 4KB EEPROM
UART, SPI and JTAG interface
16 Channels in the 2.45GHz ISM band
Up to 250kbps
Integrated chip antenna or External Antenna options
2.7 ~ 3.6V supply voltage
-30?C to 85?C operating temperature
Conforms with ETSI EN 300 440 (Europe), FCC CFR-47 part 15.247 and 15.249 (USA), ARIB STD-T66 (Japan)
Applications
Wireless remote control
Building automation
Personal area network
Industrial control
OEM equipment
PC peripherals
Specifications
Parameters
EZB-001
Performance
Range (LOS)
30m
Output Power
-25dBm~0dBm (1mW)
Data Rate
250Kbps
Receiver Sensitivity (PER=1%)
-94dBm
Power Requirements
Supply Voltage
2.7~3.6V
Tx Current (typical)
27mA
Rx Current (typical)
30mA
Power-down current
< 10uA
General
Operating Frequency
2.4~2.4835GHz
Dimensions
16 x 33.5 x 3.3 mm
Operating Temp.
-30¡ÆC ~ 85¡ÆC
Antenna Options
Integrated / External
Networking
Supported Network Topologies
Point-to-point, Point-to-multipoint, Mesh
Channels
16
Certifications
FCC/CE
Pending

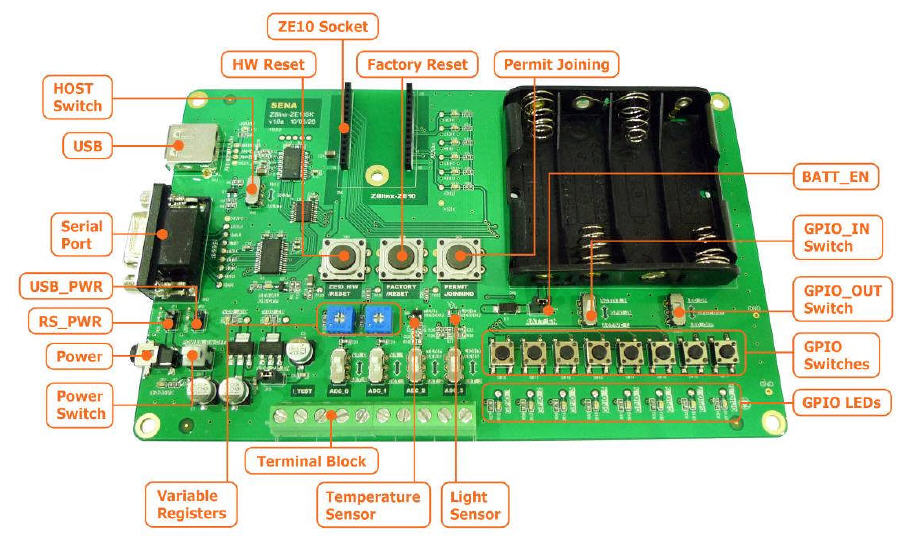

EZBee-DBK: Zigbee Evaluation Kit EZBee™ Evaluation Kit (part no.: EZB-001EK) is the evaluation kit of EZBee™, which is a compact Zigbee single-board module compliant to the 2.45GHz Zigbee specification v1.0 of IEEE 802.15.4. With EZBee™, users may enable Zigbee wireless network easily without a professional knowledge on Zigbee. EZBee™ is designed to be used as a serial RF module to a Host system.
Using AT commands provided, users may communicate with EZBee™. Full AT commands available can be found in the User manual of EZBee™ (doc# EZB_manual_0927)
EZBee™ can be operated as coordinator, router and end-device. Coordinators and routers are FFD (Full functional Device), so can be communicated peer-to-peer without beacon. But End-device module is RFD (Reduced Functional Device), so can be working only with Coordinator and routers and can be configured to work as low power mode.
